Introduction of Twin-Screw Extruded Feed Production Line
1. Brief Overview
This complete set of 70 model twin-screw extrusion feed line is manufactured by Jinan Saixin, nearly new condition with very few production runs, full-process automatic feed processing equipment for pet food, aquatic floating fish feed and poultry feed.
2. Full Line Configuration
The whole production system includes 6 core units:

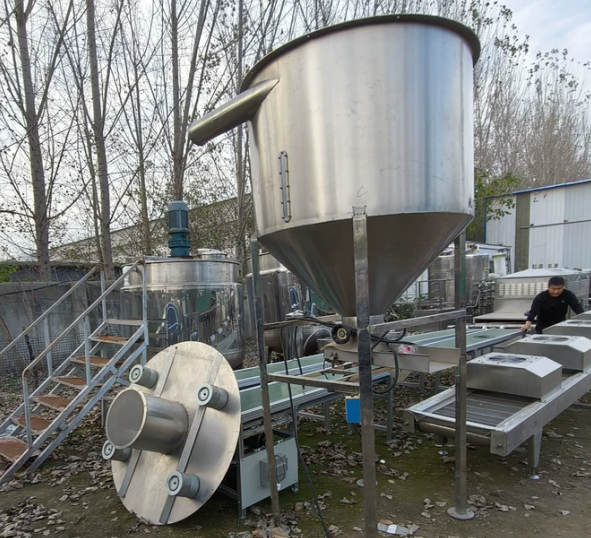

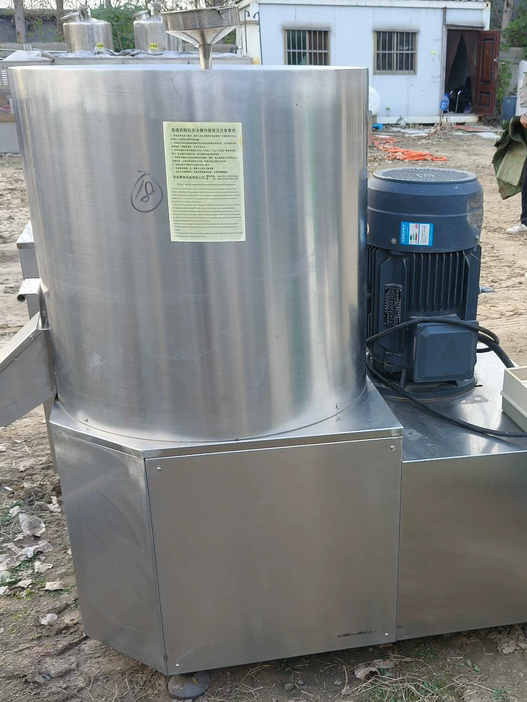

- Screw Feeder & 11KW High-speed Mixer: Raw grain, corn meal, soybean powder automatic conveying and uniform blending.
- 70 Twin-Screw Extruder (Core Machine): Raw material high-temperature high-pressure extruding, forming feed pellet, complete starch gelatinization.

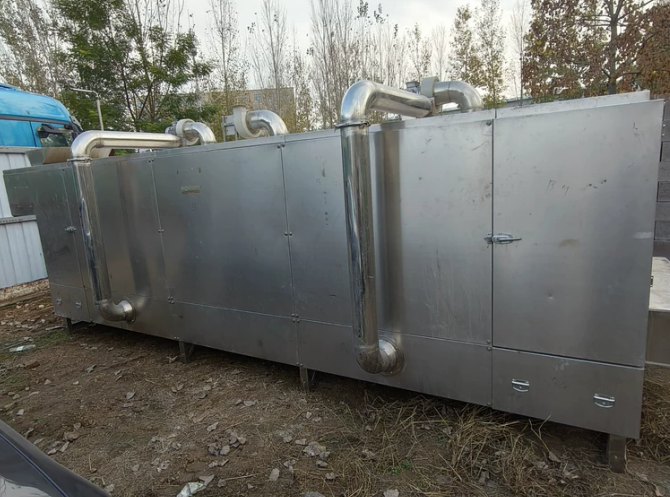

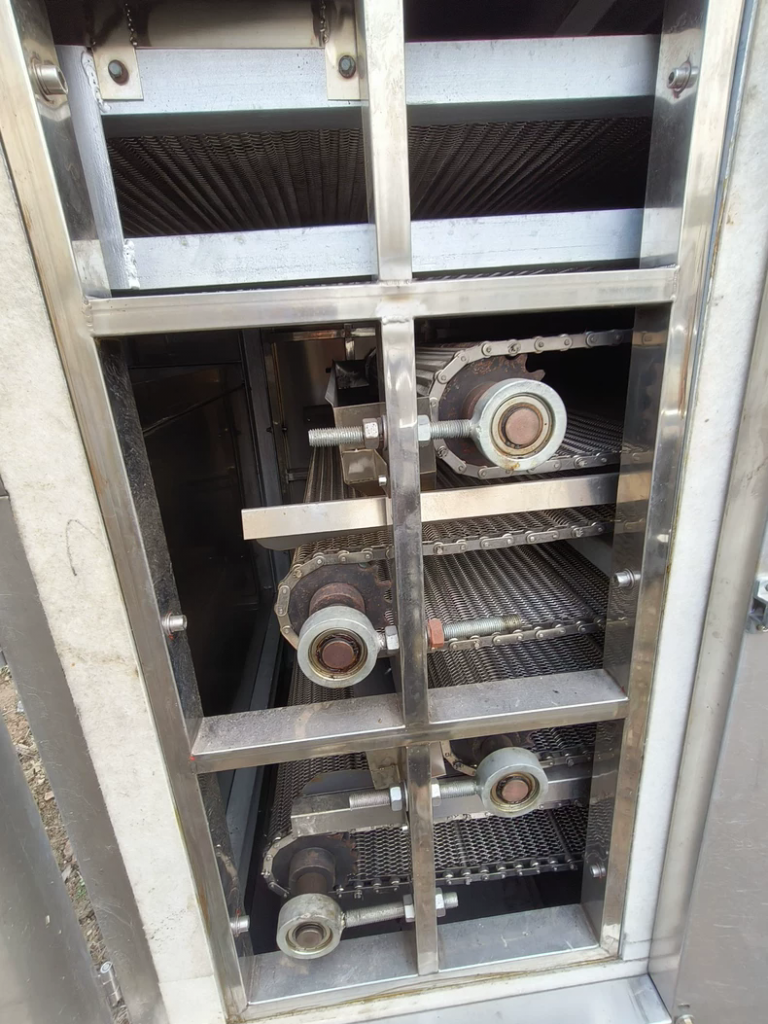

- 5-layer 5m Electric Mesh Belt Dryer (the big stainless steel oven in picture): Remove excess moisture from feed pellets for long-term storage.

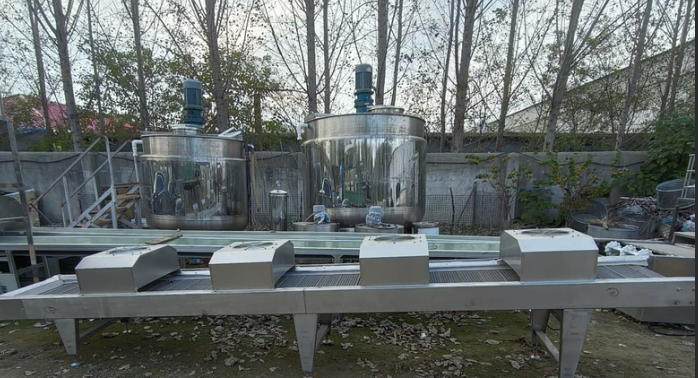

- 5m Air Cooling Conveyor: Cool down dried feed to ambient temperature.
- Air Conveying System & Finished Product Silo: Automatically transport finished pellets into storage bin.
3. Production Advantage
- Low Labor Cost: Only 2~3 workers to run full production line, from raw powder to finished feed in one continuous flow.
- Flexible Size Adjustment: Change feed pellet diameter and length easily to produce dog food, cat food, floating fish feed, fox feed.
- Stable Output & High Efficiency: Consistent finished feed appearance, low breakage rate.
- Space-saving layout, no large overhead crane required, forklift available for factory feeding and unloading.
4. Main Application Market
Suitable for small & medium feed factory, widely demanded in Middle East (Kuwait, Saudi Arabia), Southeast Asia and Africa countries. Local raw materials like corn, cassava can be used directly for feed production, huge market potential for breeding industry.
5. Product Status
Second-hand equipment, almost unused, complete set ready for factory relocation and commissioning at once, much more cost-effective than brand-new machine.
